This is one of the rare occasion where I take out my previous LEGO TF and improve upon them. This is because I usually prefer to start from a clean slate each time I start building a new LEGO TF . Snapdragon is one of the exception here.
I made version 2 of Snapdragon (above) back in the year 2012 (click here for more photos), and made 2 extra copies meant for an exhibition few years later, to show all the 3 modes for visitors to see.
Recently I'd thought he could be improved and refined further with newer LEGO parts like mixel ball joints and slopes, with minimal changes to his transformation style. What was meant to be a quickie project ... ended with extensive enhancements over 2 weeks time.
The jet engines on both sides had undergone quite a few design iterations before I settled for above.
With his weapon connected on top of the jet.
The rear engines must be blue coz that's the dino arms latching onto the engines.
Transformation to Dino Mode
Thanks to new LEGO inverted slopes (next to the windscreen), the jet nosecone can bend elegantly to form dino tail.
The small beast arms unlatched from the rear of the jet mode.
Permission to Roar?
Old version of Snapdragon's beast head (right) looks stoned and with buck teeth.
Recent LEGO sets offered me a bunch of medium azure blue colored parts. Just perfect for Snapdragon's color scheme!
Transformation to Bot Mode
Thanks to mixel ball joints implemented on the dino arms.. they're flexible enough to be tucked into robot legs together with the dino head.
The jet nosecone now tucked in more neatly to the back of the robot mode,as opposed to the previous version (below), that juts out like a sore thumb.
Of course... a new Snapdragon demand a new head design too!
So did I get the color scheme close to the original G1 toy of Snapdragon (inset) ?
The new shoulder joint implementation allowed for better articulations for the arms.
Old Snapdragon was hindered by the jet engine kibble on his shoulder when it comes to poses that require him to raise his arms pointing to certain directions.
Version 3 here solve this problem simply by implementing a hinged mechanism on the shoulder kibble. Note how they fold out of the way when arms are raised.

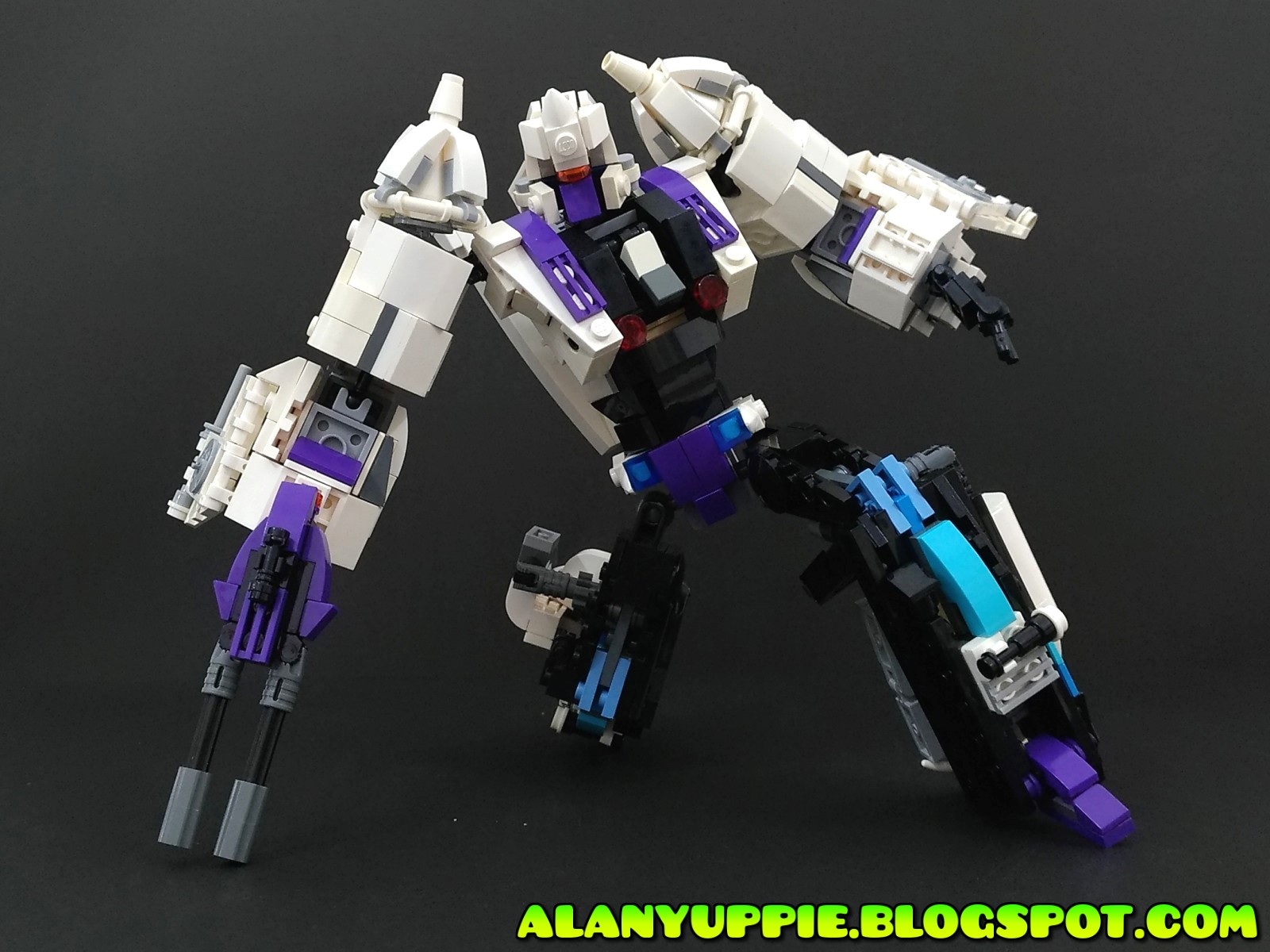

Heroes eeer villain's landing with his rifle as crutch. Due to his thick calves.. his knee articulations is limited to about 90 degree at best. So he can't really squat.
